These functions allow measurement of various features of a diffusion process:

  • node_by_adopt_time(): Measures the number of time steps until nodes adopt/become infected

  • node_by_adopt_threshold(): Measures nodes' thresholds from the amount of exposure they had when they became infected

  • node_by_adopt_recovery(): Measures the average length nodes that become infected remain infected in a compartmental model with recovery

  • node_by_adopt_exposure(): Measures how many exposures nodes have to a given mark

node_by_adopt_time(.data, attribute = "diffusion")

node_by_adopt_threshold(
  .data,
  normalized = TRUE,
  lag = 1,
  direction = c("in", "out", "all"),
  attribute = "diffusion"
)

node_by_adopt_recovery(.data, attribute = "diffusion")

node_by_adopt_exposure(
  .data,
  mark,
  time = 0,
  direction = c("in", "out", "all"),
  attribute = "diffusion"
)

Arguments

.data

A network object of class stocnet, igraph, tbl_graph, network, or similar. Internally any of these will be coerced to an efficient implementation. For more information on possible coercions, see e.g. manynet::as_stocnet().

attribute

Name of the nodal attribute that holds the diffusion, as its start state on the nodes and as its changes. By default "diffusion", as in play_diffusion().

normalized

Logical scalar, whether scores are normalized. Different denominators may be used depending on the measure, whether the object is one-mode or two-mode, and other arguments. By default TRUE.

lag

The number of time steps back upon which the thresholds are inferred. By default lag = 1, which counts only the alters that adopted before the node did. lag = 0 also counts the alters that adopted at the same time step.

direction

Character string, "in" counts the exposure that arrives along ties from adopters to the node, "out" along ties from the node to adopters, and "all" along both. By default "in", so contagion travels in the direction of the arcs. Undirected networks give the same result for every direction.

mark

A valid 'node_mark' object or logical vector (TRUE/FALSE) of length equal to the number of nodes in the network.

time

A time point until which infections/adoptions should be identified. By default time = 0.

Value

A node_measure numeric vector the length of the nodes in the network, providing the scores for each node. If the network is labelled, then the scores will be labelled with the nodes' names.

The object also carries the measure it computed, the range its values can fall within, and whether and how those values were normalized. These are shown as a one-line header when the object is printed. Where a measure offers a choice between several ways of counting the same thing, it also carries the variant it used. All can be retrieved with attr().

Adoption time

node_by_adopt_time() measures the time units it took until each node became infected. Note that an adoption time of 0 indicates that this was a seed node.

Thresholds

node_by_adopt_threshold() infers nodes' thresholds based on how much exposure they had when they were infected. This inference is of course imperfect, especially where there is a sudden increase in exposure, but it can be used heuristically. In a threshold model, nodes activate when \(\sum_{j:\text{active}} w_{ji} \geq \theta_i\), where \(w\) is some (potentially weighted) matrix, \(j\) are some already activated nodes, and \(theta\) is some pre-defined threshold value. Where a fractional threshold is used, the equation is \(\frac{\sum_{j:\text{active}} w_{ji}}{\sum_{j} w_{ji}} \geq \theta_i\). That is, \(theta\) is now a proportion, and works regardless of whether \(w\) is weighted or not. The normalized thresholds divide by the in-, out-, or total degree (or strength, where the network is weighted) that matches direction. Nodes with no ties in that direction that adopt have a threshold of 0.

Seeds have a missing threshold, since their adoption says nothing about their exposure, and so they do not bring down an average threshold. A node that is never active is out of the diffusion, as in manynet::play_diffusion(): its ties count neither for nor against the exposure of its contacts, and its own threshold, time, and exposure are missing. Nodes that never adopt have an infinite threshold, since their threshold was never reached. lag = 0, direction = "out" reproduces netdiffuseR::threshold(valued = TRUE), and lag = 1, direction = "in" reproduces netdiffuseR::threshold(lags = 1, outgoing = FALSE, valued = TRUE), except that {netdiffuseR} reports non-adopters as missing and gives seeds a value where there is no lag, and counts cumulative rather than current adopters. By default, {netdiffuseR} ignores tie weights, so the results differ from it on weighted networks.

Recovery

node_by_adopt_recovery() measures the average length of time that nodes that become infected remain infected in a compartmental model with recovery. Infections that are not concluded by the end of the study period are calculated as infinite.

Exposure

node_exposure() calculates the number of infected/adopting nodes to which each susceptible node is exposed. It usually expects network data and an index or mark (TRUE/FALSE) vector of those nodes which are currently infected, but if a diff_model is supplied instead it will return nodes exposure at \(t = 0\). Nodes in the mark have an exposure of 0.

References

On diffusion measures

Valente, Tom W. 1995. Network models of the diffusion of innovations (2nd ed.). Cresskill N.J.: Hampton Press.

See also

Other diffusion: mark_diff, measure_diffusion_infection, measure_diffusion_net, member_diffusion, motif_exposure, motif_hazard

Other measures: measure_accuracy_net, measure_accuracy_node, measure_assort_net, measure_assort_node, measure_breadth, measure_broker_node, measure_brokerage, measure_central_between, measure_central_close, measure_central_degree, measure_central_eigen, measure_central_tie_between, measure_central_tie_close, measure_central_tie_degree, measure_central_tie_eigen, measure_closure, measure_closure_node, measure_cohesion, measure_core, measure_diffusion_infection, measure_diffusion_net, measure_diverse_dispersion, measure_diverse_net, measure_diverse_node, measure_diverse_tie, measure_domain, measure_features, measure_fit, measure_fragmentation, measure_hierarchy, measure_opinion, measure_periods, tie_by_width()

Other nodal: mark_core, mark_degree, mark_diff, mark_nodes, mark_select_node, measure_accuracy_node, measure_assort_node, measure_broker_node, measure_brokerage, measure_central_between, measure_central_close, measure_central_degree, measure_central_eigen, measure_closure_node, measure_core, measure_diverse_node, measure_domain, measure_opinion, member_brokerage, member_cliques, member_community, member_community_hier, member_community_modular, member_community_partition, member_community_spread, member_components, member_core, member_diffusion, member_equivalence, motif_accuracy_node, motif_brokerage_node, motif_clique, motif_composition, motif_exposure, motif_node, motif_path

Examples

  smeg <- generate_smallworld(15, 0.025)
  smeg_diff <- play_diffusion(smeg, recovery = 0.2)

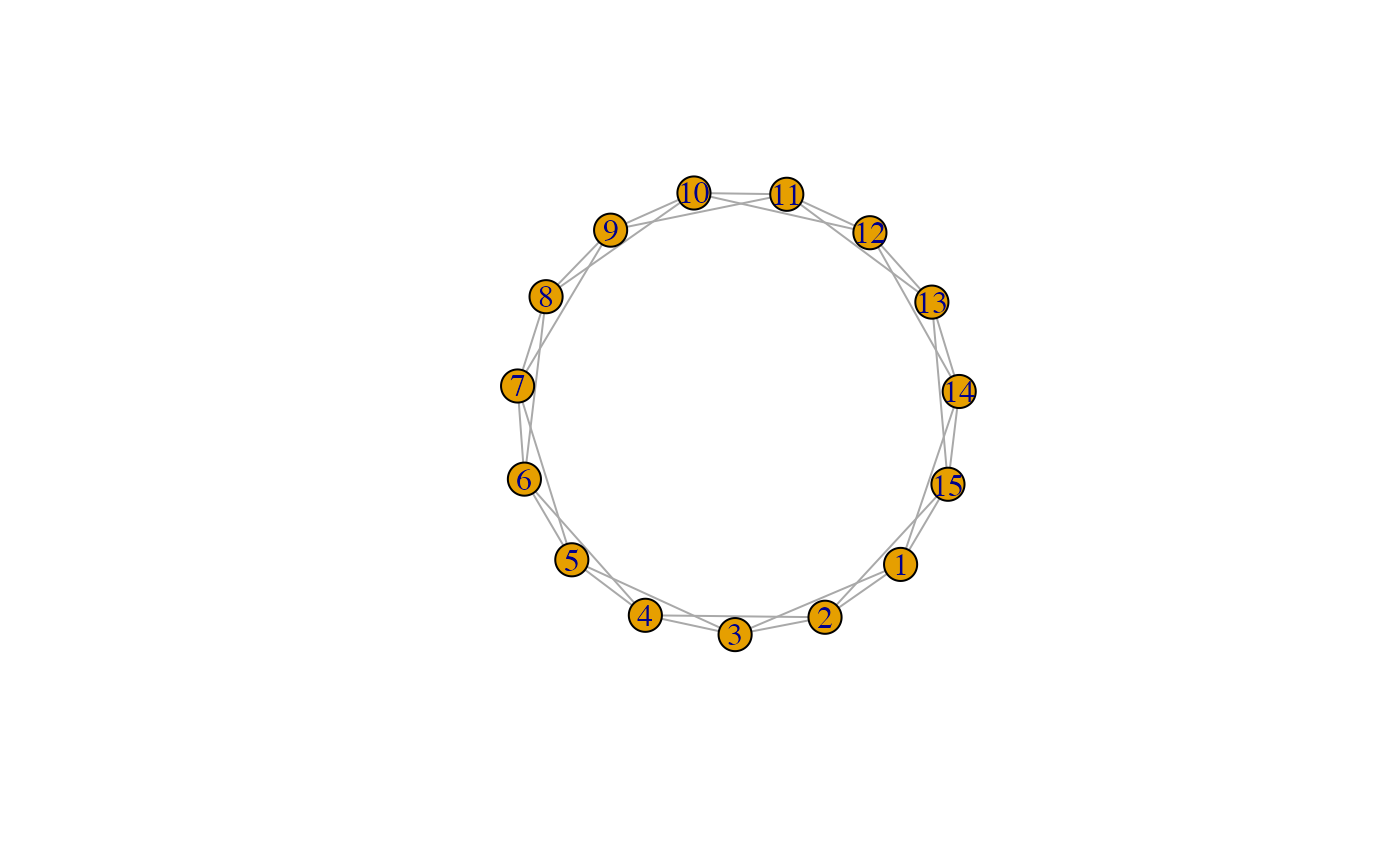

  if (requireNamespace("autograph", quietly = TRUE)) plot(smeg_diff)

  # To measure when nodes adopted a diffusion/were infected
  (times <- node_by_adopt_time(smeg_diff))
#> # Adoption time [0, Inf)
#> ▃▂▃▂
#>      V1    V2    V3    V4    V5    V6    V7    V8    V9   V10   V11   V12   V13
#> 1     0     1     1     2     2     3     3     4     4     4     3     3     2
#> # ... and 2 more values from this nodeset. Use `print_all(...)` to print all values.
  # To infer nodes' thresholds
  node_by_adopt_threshold(smeg_diff)
#> # Adoption threshold, normalized [0, 1]
#> ▄▁▂▁▁▄
#>      V1    V2    V3    V4    V5    V6    V7    V8    V9   V10   V11   V12   V13
#> 1    NA  0.25   0.2   0.5   0.5 0.333  0.25   0.5   0.5   0.5  0.25 0.333   0.5
#> # ... and 2 more values from this nodeset. Use `print_all(...)` to print all values.
  # To measure how long each node remains infected for
  node_by_adopt_recovery(smeg_diff)
#> # Recovery time [0, Inf)
#> ▆▁▁▁▁▁▁
#>      V1    V2    V3    V4    V5    V6    V7    V8    V9   V10   V11   V12   V13
#> 1   Inf     3     2   Inf     3     2     3     5     8     3     3     3     3
#> # ... and 2 more values from this nodeset. Use `print_all(...)` to print all values.
  # To measure how much exposure nodes have to a given mark
  node_by_adopt_exposure(smeg, mark = c(1,3))
#> # Exposure [0, Inf)
#> ▆▂▁▂
#>      V1    V2    V3    V4    V5    V6    V7    V8    V9   V10   V11   V12   V13
#> 1     0     2     0     1     1     0     0     0     0     0     0     0     0
#> # ... and 2 more values from this nodeset. Use `print_all(...)` to print all values.
  node_by_adopt_exposure(smeg_diff)
#> # Exposure [0, Inf)
#> ▆▁▁▁▃
#>      V1    V2    V3    V4    V5    V6    V7    V8    V9   V10   V11   V12   V13
#> 1     0     1     1     0     0     0     0     0     0     0     0     0     0
#> # ... and 2 more values from this nodeset. Use `print_all(...)` to print all values.
