Example script prepared analyzing the Fisheries Agreements data with
the R goldfish package. Models inspired by
section 7 of:
Stadtfeld, Hollway & Block (2017), “Dynamic Network Actor Models: Investigating Coordination Ties through Time”, Sociological Methodology, 2017, 47(1): 1-40. DOI: 10.1177/0081175017709295
Step 0: Load package and data
First, let’s make sure we’re starting with a clean slate and take the goldfish out of the bowl:
This lazy loads several datasets, including the one we will now use:
data("Fisheries_Treaties_6070")
# ?Fisheries_Treaties_6070Note that these objects are only ‘promised’ for the moment, but are available in the environment to be used, and more information will appear as you use them. You can find out more about this dataset, its format, and its origins in a couple of ERGM papers by calling its documentation.
Step 1: Create data objects
Step 1a: Define node set(s) and attributes
We’ve loaded a dataset that defines its nodes and their attributes as a data frame.
tail(states)
#> label present regime gdp
#> 162 SLB FALSE NA NA
#> 165 VCT TRUE NA 1.306663e-05
#> 167 BLZ TRUE NA 2.807250e-05
#> 169 KNA TRUE NA 1.236664e-05
#> 170 BRN FALSE NA NA
#> 193 KIR FALSE NA NA
class(states)
#> [1] "data.frame"We need to define them as nodes so that goldfish knows what to do with them.
states <- defineNodes(states)
head(states)
#> Number of nodes: 6
#> Number of present nodes: 6
#>
#> First 6 rows
#> label present regime gdp
#> 1 AND TRUE NA NA
#> 2 DNK TRUE 10 0.006248947
#> 3 FRA TRUE 5 0.062651475
#> 4 DEU TRUE -9 NA
#> 5 ITA TRUE 10 0.040385288
#> 6 LIE TRUE NA NA
class(states)
#> [1] "nodes.goldfish" "data.frame"As you can see, the structure is the same, but the added class helps goldfish interpret the data frame correctly.
Next we want to link events to this nodeset to indicate how the attributes change. There are three attributes associated with this node set, and they all change:
head(sovchanges)
#> time node replace
#> 1165 1960-04-03 00:00:00 SEN TRUE
#> 99 1960-04-26 23:00:00 TGO TRUE
#> 1317 1960-05-31 00:00:00 COD TRUE
#> 1316 1960-05-31 00:00:00 MLI TRUE
#> 100 1960-06-19 23:00:00 MLI TRUE
#> 101 1960-06-25 23:00:00 MDG TRUE
head(regchanges)
#> time node replace
#> 814 1960-01-02 LAO -1
#> 361 1960-01-16 CUB NA
#> 410 1960-01-16 VNM -8
#> 1269 1960-04-04 SEN -1
#> 1185 1960-04-16 KOR NA
#> 1449 1960-04-27 TGO -6
head(gdpchanges)
#> time node replace
#> 202 1961-01-01 DNK 0.006933842
#> 203 1961-01-01 FRA 0.068346742
#> 205 1961-01-01 ITA 0.044842760
#> 207 1961-01-01 NLD 0.013493834
#> 208 1961-01-01 PRT 0.003417517
#> 211 1961-01-01 ESP 0.013834301The first attribute, in the second column of the data frame, is special. It holds the (reserved) “present” variable that indicates whether nodes are available to send or receive ties.
head(states$present) # or states[,2]
#> [1] TRUE TRUE TRUE TRUE TRUE TRUESome state nodes are not present (do not hold sovereign status) at the start of our study period. But we do have an additional list of events detailing how these states gain (and some lose) sovereign status during the study period. To make sure goldfish recognises these changes at the appropriate point, we “link” these events to the node set and attribute we have defined.
states <- linkEvents(states, sovchanges, attribute = "present")
# If you call the object now, what happens?
states
#> Number of nodes: 154
#> Number of present nodes: 137
#> Dynamic attribute(s): Linked events
#> present sovchanges
#>
#> First 6 rows
#> label present regime gdp
#> 1 AND TRUE NA NA
#> 2 DNK TRUE 10 0.006248947
#> 3 FRA TRUE 5 0.062651475
#> 4 DEU TRUE -9 NA
#> 5 ITA TRUE 10 0.040385288
#> 6 LIE TRUE NA NAThat’s because the event list is only linked to the node set, to update it when necessary. You can see what is linked to which attribute here:
str(states)
#> Classes 'nodes.goldfish' and 'data.frame': 154 obs. of 4 variables:
#> $ label : chr "AND" "DNK" "FRA" "DEU" ...
#> $ present: logi TRUE TRUE TRUE TRUE TRUE TRUE ...
#> $ regime : num NA 10 5 -9 10 NA 10 -9 -1 NA ...
#> $ gdp : num NA 0.00625 0.06265 NA 0.04039 ...
#> - attr(*, "events")= chr "sovchanges"
#> - attr(*, "dynamicAttributes")= chr "present"We can continue on with our other two dynamic monadic variables. Try this for yourself now.
states <- linkEvents(states, regchanges, attribute = "regime") |>
linkEvents(gdpchanges, attribute = "gdp")
str(states)
#> Classes 'nodes.goldfish' and 'data.frame': 154 obs. of 4 variables:
#> $ label : chr "AND" "DNK" "FRA" "DEU" ...
#> $ present: logi TRUE TRUE TRUE TRUE TRUE TRUE ...
#> $ regime : num NA 10 5 -9 10 NA 10 -9 -1 NA ...
#> $ gdp : num NA 0.00625 0.06265 NA 0.04039 ...
#> - attr(*, "events")= chr [1:3] "sovchanges" "regchanges" "gdpchanges"
#> - attr(*, "dynamicAttributes")= chr [1:3] "present" "regime" "gdp"Step 1b: Define networks
Next we want to define the dyadic or network elements: the bilateral fisheries agreements and contiguity between the state nodes.
Since international fisheries management began before 1960, there were already several bilateral fisheries agreements in place at the start of our time period. This is shown in the matrix
bilatnet[1:12, 1:12] # head(bilatnet, n = c(12, 12))
#> AND DNK FRA DEU ITA LIE NLD PRT RUS SMR ESP SWE
#> AND 0 0 0 0 0 0 0 0 0 0 0 0
#> DNK 0 0 0 1 0 0 0 0 0 0 0 0
#> FRA 0 0 0 0 0 0 0 0 0 0 2 0
#> DEU 0 1 0 0 0 0 0 0 0 0 0 0
#> ITA 0 0 0 0 0 0 0 0 0 0 0 0
#> LIE 0 0 0 0 0 0 0 0 0 0 0 0
#> NLD 0 0 0 0 0 0 0 0 0 0 0 0
#> PRT 0 0 0 0 0 0 0 0 0 0 0 0
#> RUS 0 0 0 0 0 0 0 0 0 0 0 0
#> SMR 0 0 0 0 0 0 0 0 0 0 0 0
#> ESP 0 0 2 0 0 0 0 0 0 0 0 0
#> SWE 0 0 0 0 0 0 0 0 0 0 0 0Two things can be observed here. What are they?
So that goldfish knows how to handle this network, we define it so:
bilatnet <- defineNetwork(bilatnet, nodes = states, directed = FALSE)We specify the nodes so that goldfish can check for consistency, and relate the network to that nodeset when needed.
class(bilatnet)
#> [1] "network.goldfish" "matrix" "array"
str(bilatnet)
#> 'network.goldfish' num [1:154, 1:154] 0 0 0 0 0 0 0 0 0 0 ...
#> - attr(*, "dimnames")=List of 2
#> ..$ : chr [1:154] "AND" "DNK" "FRA" "DEU" ...
#> ..$ : chr [1:154] "AND" "DNK" "FRA" "DEU" ...
#> - attr(*, "events")= chr(0)
#> - attr(*, "nodes")= chr "states"
#> - attr(*, "directed")= logi FALSE
bilatnet
#> Dimensions: 154 154
#> Number of ties (no weighted): 22
#> Nodes set(s): states
#> It is a one-mode and undirected network
#>
#> First 6 rows and columns
#> AND DNK FRA DEU ITA LIE
#> AND 0 0 0 0 0 0
#> DNK 0 0 0 1 0 0
#> FRA 0 0 0 0 0 0
#> DEU 0 1 0 0 0 0
#> ITA 0 0 0 0 0 0
#> LIE 0 0 0 0 0 0By stating that this is an undirected network, any updates will be forced to be symmetric.
Now that goldfish recognises the matrix as a network, we can also associate an event list that updates it. We use precisely the same function as before (since we have defined our objects, goldfish knows what to do and how to check it).
bilatnet <- linkEvents(bilatnet, bilatchanges, nodes = states)
bilatnet
#> Dimensions: 154 154
#> Number of ties (no weighted): 22
#> Nodes set(s): states
#> It is a one-mode and undirected network
#> Linked events: bilatchanges
#>
#> First 6 rows and columns
#> AND DNK FRA DEU ITA LIE
#> AND 0 0 0 0 0 0
#> DNK 0 0 0 1 0 0
#> FRA 0 0 0 0 0 0
#> DEU 0 1 0 0 0 0
#> ITA 0 0 0 0 0 0
#> LIE 0 0 0 0 0 0TASK: You should now be able to do the same with the initial contiguity network and the event list changing it.
contignet <- defineNetwork(contignet, nodes = states, directed = FALSE) |>
linkEvents(contigchanges, nodes = states)
class(contignet)
#> [1] "network.goldfish" "matrix" "array"
contignet
#> Dimensions: 154 154
#> Number of ties (no weighted): 175
#> Nodes set(s): states
#> It is a one-mode and undirected network
#> Linked events: contigchanges
#>
#> First 6 rows and columns
#> AND DNK FRA DEU ITA LIE
#> AND 0 0 0 0 0 0
#> DNK 0 0 1 0 0 0
#> FRA 0 1 0 0 1 0
#> DEU 0 0 0 0 0 0
#> ITA 0 0 1 0 0 0
#> LIE 0 0 0 0 0 0Step 1c: Define dependent events
The final step in defining the data objects is to identify the dependent events. Since treaty dissolution is a rarer, more complex, and idiosyncratic process, we will only look at those events that create a treaty tie between countries.
createBilat <- defineDependentEvents(
events = bilatchanges[bilatchanges$increment == 1,],
nodes = states,
defaultNetwork = bilatnet
)Note that we define the default network to which this dependent event list applies, as well as the node set, so that structural effects can be interpreted correctly.
class(createBilat)
#> [1] "dependent.goldfish" "data.frame"
createBilat
#> Number of events: 69
#> Nodes set(s): states
#> Default network: bilatnet
#>
#> First 6 rows
#> time sender receiver increment
#> 36 1960-03-19 FIN SWE 1
#> 37 1960-06-23 FIN RUS 1
#> 38 1960-11-15 FIN NOR 1
#> 39 1960-11-17 GBR NOR 1
#> 40 1961-03-11 GBR ISL 1
#> 41 1961-07-19 DEU ISL 1Intermediate step: Visualisation
While not a required part of the modeling process, we highly recommend the visualisation of your data for analytic and diagnostic purposes.
goldfish includes wrappers for base R commands to help extract monadic and dyadic information for certain time points.
?as.data.frame.nodes.goldfish
?as.matrix.network.goldfishWe can use these functions to visually compare our network at two (or more) different time periods using igraph.
library(igraph)
library(manynet)
# network at the beginning of the event sequence
startStates <- as.data.frame(
states,
time = as.numeric(as.POSIXct("1960-01-02"))
)
startNet <- as.matrix(bilatnet, time = as.numeric(as.POSIXct("1960-01-02"))) |>
as_igraph() |>
add_node_attribute("present", startStates$present) |>
add_node_attribute("regime", startStates$regime) |>
add_node_attribute("gdp", startStates$gdp)
# network at the end of the event sequence
endStates <- as.data.frame(states, time = as.numeric(as.POSIXct("1970-01-01")))
endNet <- as.matrix(bilatnet, time = as.numeric(as.POSIXct("1970-01-01"))) |>
as_igraph() |>
add_node_attribute("present", endStates$present) |>
add_node_attribute("regime", endStates$regime) |>
add_node_attribute("gdp", endStates$gdp)
# logical value indicating if states where present and with agreements
isStateActiveStart <- startStates$present & node_deg(startNet) > 0
isStateActiveEnd <- endStates$present & node_deg(endNet) > 0
isStateActive <- isStateActiveStart | isStateActiveEnd
# subset networks to active states
startNet <- delete_nodes(startNet, !isStateActive)
endNet <- delete_nodes(endNet, !isStateActive)
graphs(list(startNet, endNet), layout = "fr")

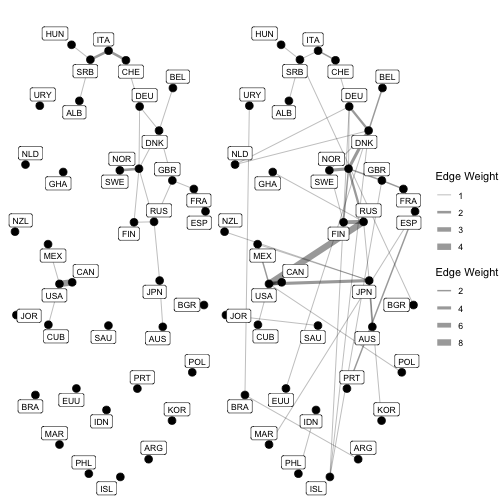

plot of chunk plot-teaching2
What can we observe?
Step 2: Specify and estimate model
The second step is to specify and fit a model to this data. This step can be broken up into several stages:
- Step 2a. Specify a model formula from the effects and variables available
- Step 2b. Calculate the change statistics associated with these effects
- Step 2c. Fit an appropriate model to these statistics
However, in goldfish we also have the option of accelerating this process and using memory more efficiently by combining these three sub-steps in one. Nonetheless, it can be helpful to think of 2a separately, and recognise steps 2b and 2c as goldfish does them.
Let us first see how to specify the effects and which are currently available:
vignette("goldfishEffects")The data and model specification is similar (though not the same as) Stadtfeld, Hollway, and Block 2017a
formula1 <-
createBilat ~ inertia(bilatnet) + indeg(bilatnet, ignoreRep = TRUE) +
trans(bilatnet, ignoreRep = TRUE) +
tie(contignet) +
alter(states$regime) + diff(states$regime) +
alter(states$gdp) + diff(states$gdp)
estPrefs <- list(
returnIntervalLogL = TRUE,
initialDamping = 40,
maxIterations = 30
)
system.time(
partnerModel <- estimate(
formula1,
model = "DyNAM", subModel = "choice_coordination",
estimationInit = estPrefs
)
)
#> Warning: engine = "gather_compute" doesn't support ignoreRep effects. engine
#> ="default" is used instead.
#> user system elapsed
#> 57.448 2.324 59.799Did the model converge? If not, you can restart the estimation process using the same formula and current parameter estimates:
estPrefs <- list(
returnIntervalLogL = TRUE,
initialDamping = 40,
maxIterations = 30,
initialParameters = coef(partnerModel)
)
partnerModel <- estimate(
formula1,
model = "DyNAM", subModel = "choice_coordination",
estimationInit = estPrefs
)
#> Warning: engine = "gather_compute" doesn't support ignoreRep effects. engine
#> ="default" is used instead.
summary(partnerModel)
#>
#> Call:
#> estimate(x = createBilat ~ inertia(bilatnet) + indeg(bilatnet,
#> ignoreRep = TRUE) + trans(bilatnet, ignoreRep = TRUE) + tie(contignet) +
#> alter(states$regime) + diff(states$regime) + alter(states$gdp) +
#> diff(states$gdp), model = "DyNAM", subModel = "choice_coordination",
#> estimationInit = estPrefs)
#>
#>
#> Effects details:
#> Object ignoreRep
#> inertia bilatnet
#> indeg bilatnet B
#> trans bilatnet B
#> tie contignet
#> alter states$regime
#> diff states$regime
#> alter states$gdp
#> diff states$gdp
#>
#> Coefficients:
#> Estimate Std. Error z-value Pr(>|z|)
#> inertia 2.8318525 0.2698244 10.4952 < 2.2e-16 ***
#> indeg 0.4975580 0.0662465 7.5107 5.884e-14 ***
#> trans 0.3083405 0.2138535 1.4418 0.149350
#> tie 1.0821380 0.2195159 4.9297 8.237e-07 ***
#> alter 0.0047377 0.0143109 0.3311 0.740602
#> diff 0.0010369 0.0116815 0.0888 0.929268
#> alter 5.0326922 1.5429641 3.2617 0.001107 **
#> diff -3.0780228 1.5940179 -1.9310 0.053485 .
#> ---
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Converged with max abs. score of 0.00029
#> Log-Likelihood: -386.36
#> AIC: 788.72
#> AICc: 791.12
#> BIC: 806.6
#> model: "DyNAM" subModel: "choice_coordination"Let’s interpret… - Do states prefer partners with more partners? - Do states prefer partners that are contiguous? - Does transitivity matter? - Do states prefer rich or democratic partners? - Do states prefer similarly rich or democratic partners?
formula2 <-
createBilat ~ inertia(bilatnet, weighted = TRUE) +
indeg(bilatnet) + trans(bilatnet) +
tie(contignet) + alter(states$regime) +
diff(states$regime) + alter(states$gdp) + diff(states$gdp)
estPrefs <- list(
returnIntervalLogL = TRUE,
initialDamping = 40,
maxIterations = 30,
engine = "default_c"
)
system.time(
tieModel <- estimate(
formula2,
model = "DyNAM", subModel = "choice_coordination",
estimationInit = estPrefs
)
)
#> user system elapsed
#> 30.676 0.229 30.920Extensions…
In the most recent version of goldfish, you will find some functions still under development.
One set of functions is to help integrate the results of goldfish models with the wider world of statistical modeling.
We have implemented some “tidymodels” (or rather broom) functions for extracting and printing the key results from goldfish results objects. Here is an example on the current results object:
library(broom)
library(pixiedust)
dust(tidy(tieModel, conf.int = TRUE)) |>
sprinkle(col = c(2:4, 6, 7), round = 3) |>
sprinkle(col = 5, fn = quote(pvalString(value)))
#> term estimate std.error statistic p.value conf.low conf.high
#> 1 bilatnet inertia W 0.134 0.048 2.816 0.005 0.041 0.227
#> 2 bilatnet indeg 0.568 0.058 9.854 < 0.001 0.455 0.681
#> 3 bilatnet trans 0.289 0.146 1.98 0.048 0.003 0.575
#> 4 contignet tie 1.648 0.184 8.956 < 0.001 1.288 2.009
#> 5 states regime alter -0.015 0.016 -0.957 0.34 -0.047 0.016
#> 6 states regime diff 0.008 0.013 0.651 0.52 -0.017 0.033
#> 7 states gdp alter 6.089 1.516 4.015 < 0.001 -0.047 0.016
#> 8 states gdp diff -4.601 1.582 -2.908 0.004 -0.017 0.033
glance(tieModel)
#> # A tibble: 1 × 5
#> logLik AIC BIC df nobs
#> <dbl> <dbl> <dbl> <int> <int>
#> 1 -359. 733. 751. 8 69Lastly, we have begun implementing further diagnostic functions that can help users identify areas for improving their model specification.
examineOutliers(tieModel)
#> No outliers found.

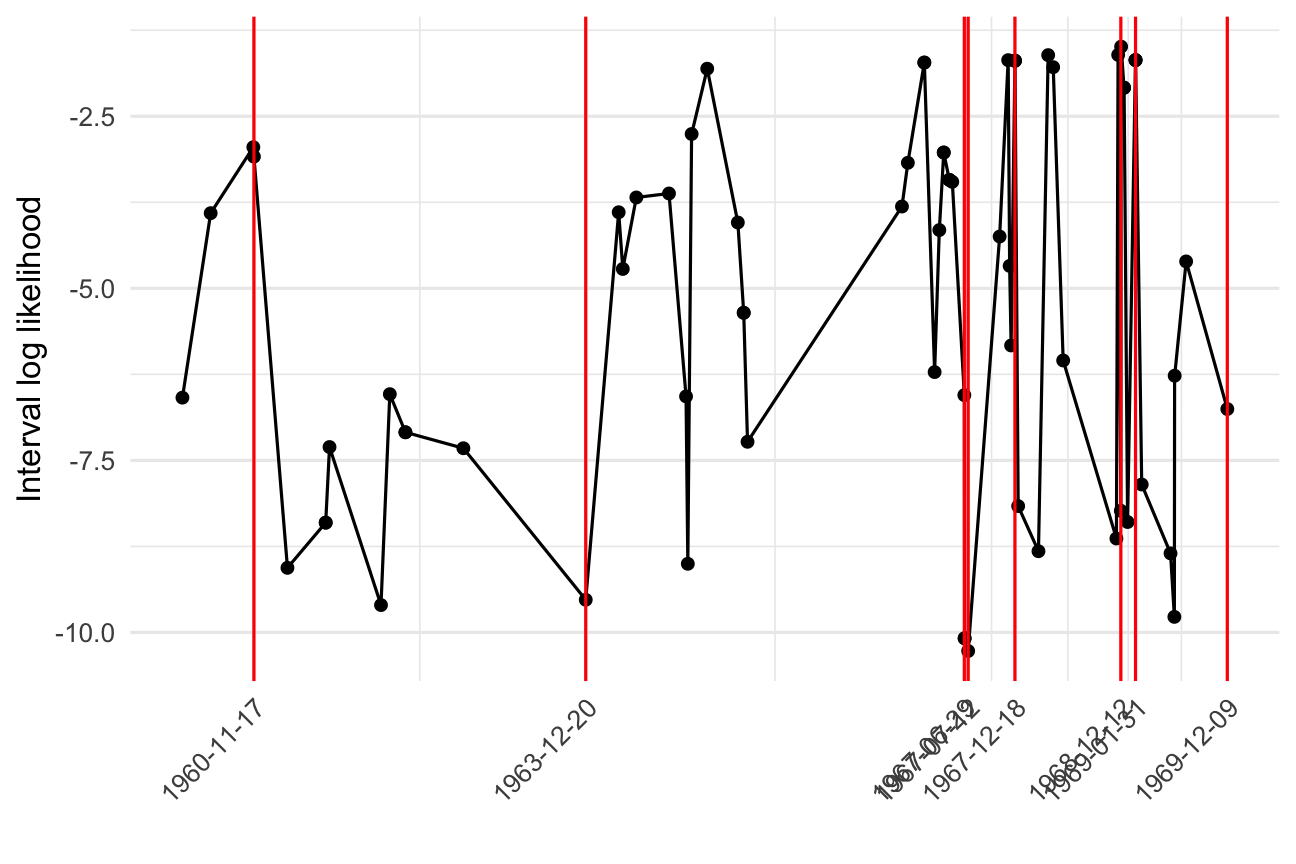

examineChangepoints(tieModel)
plot of chunk plot-examine
For more, please see Hollway (2020) Network Embeddedness and the Rate of Water Cooperation and Conflict.
